COMMERCIAL & INDUSTRIAL ENERGY STORAGE
High Voltage Energy Storage System
Three Modular ESS Solutions from 61.4kWh to 215kWh
HOVEXY High Voltage ESS is available in three scalable LiFePO4 configurations, providing reliable energy storage solutions for commercial buildings, industrial facilities and renewable energy projects.
- 61.4kWh / 128.6kWh / 215kWh
- 614V · 409.6V · 716.8V
- CAN / RS485 Communication
- Modular LiFePO4 Design
PRODUCT SERIES
Three High Voltage ESS Solutions for Different Projects
HOVEXY offers three high-voltage LiFePO4 energy storage systems designed for different commercial and industrial energy storage requirements.
61.4kWh ESS
614.4V 100Ah 61.4kWh
Ideal For
• Small C&I
• Backup Power
• Telecom Sites
128.6kWh ESS
409.6V 314Ah 128.6kWh
Ideal For
• Commercial Buildings
• Solar + Storage
• Office Parks
215kWh ESS
716.8V 314Ah 215kWh
Ideal For
• Industrial Plants
• Microgrid
• Large C&I
Detailed Specifications
| Item | 61.4kWh ESS | 128.6kWh ESS | 215kWh ESS |
|---|---|---|---|
| Battery Module | 10.24kWh / 102.4V | 16.07kWh / 51.2V | 16.07kWh / 51.2V |
| Number of Modules | 6 | 8 | 14 |
| Battery Chemistry | LiFePO4 | LiFePO4 | LiFePO4 |
| Nominal Voltage | 614.4V | 409.6V | 716.8V |
| Nominal Capacity | 100Ah | 314Ah | 314Ah |
| Nominal Energy | 61.44kWh | 128.6kWh | 215kWh |
| Operating Voltage | 537.6–700.8V | 358.4–467.2V | 627.2–817.6V |
| Standard Charge / Discharge | 50A / 0.5C | 168A / 0.6C | 140A / 0.5C |
| Max. Continuous Charge / Discharge | 100A / 1C | 168A / 0.6C | 140A / 0.5C |
| Communication | CAN / RS485 | CAN / RS485 | CAN / RS485 |
| Cycle Life | 6000 cycles | 6000 cycles | 6000 cycles |
| Protection Rating | IP20 | IP20 | IP20 |
| Dimensions (W × D × H) | 584 × 1094 × 1500 mm | 1060 × 845 × 1385 mm | 1040 × 820 × 2100 mm |
| Weight | Approx. 670 kg | Approx. 965 kg | Approx. 1670 kg |
| Compatible PCS | Solis / Deye / Sunsynk / ATESS / Megarevo | Solis / Deye / Sunsynk / ATESS / Megarevo | Solis / Deye / Sunsynk / ATESS / Megarevo |
The above data may vary due to product upgrades. Please refer to the actual product.
APPLICATIONS
High Voltage Energy Storage for C&I Projects
From commercial buildings to industrial facilities and renewable energy projects, HOVEXY High Voltage ESS provides reliable and scalable energy storage for demanding applications.

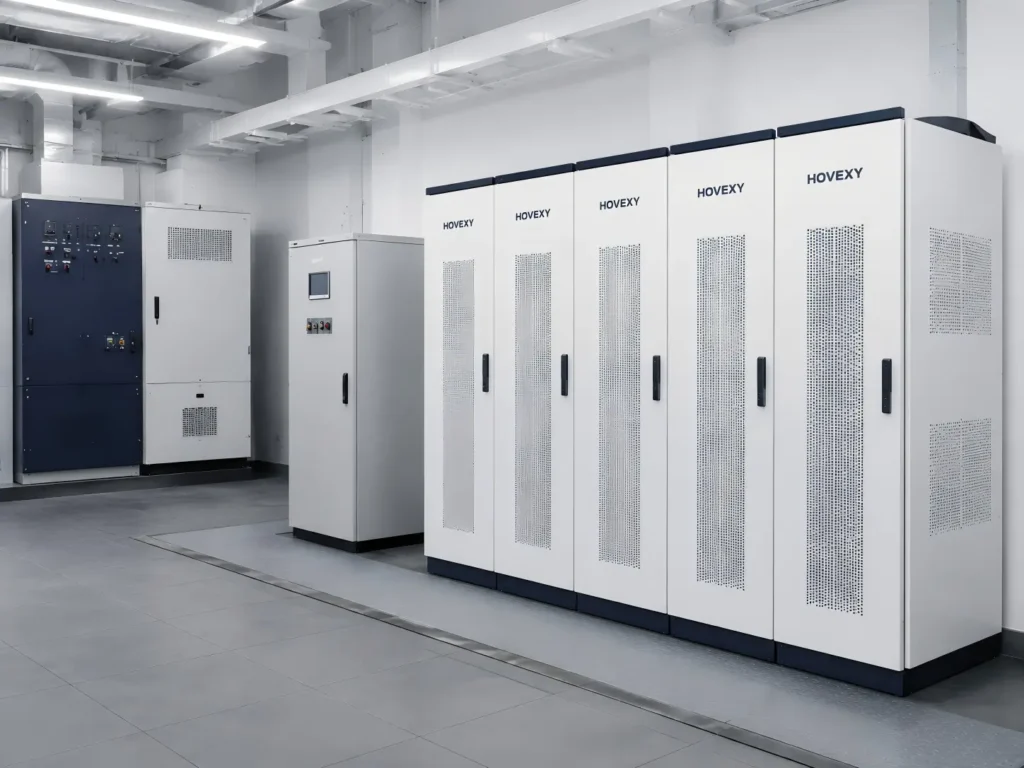

Commercial Buildings
Reduce peak electricity demand and improve backup power reliability for offices, shopping centers and commercial facilities.

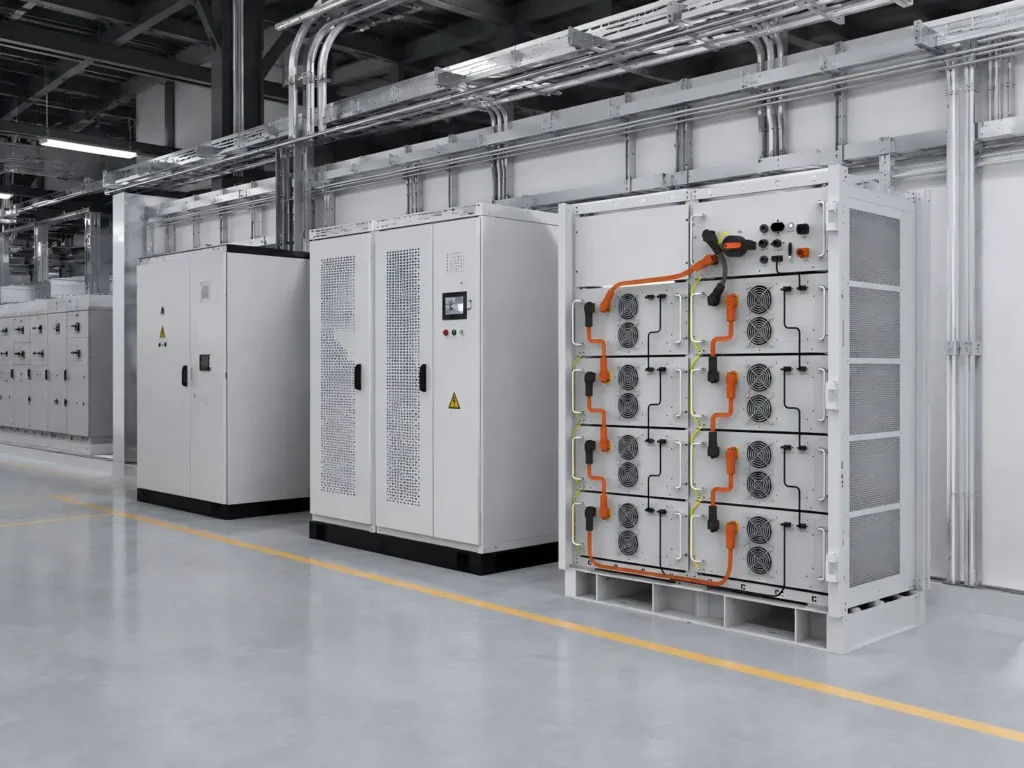

Industrial Facilities
Support factories and production sites with reliable backup power, peak shaving and energy cost management.

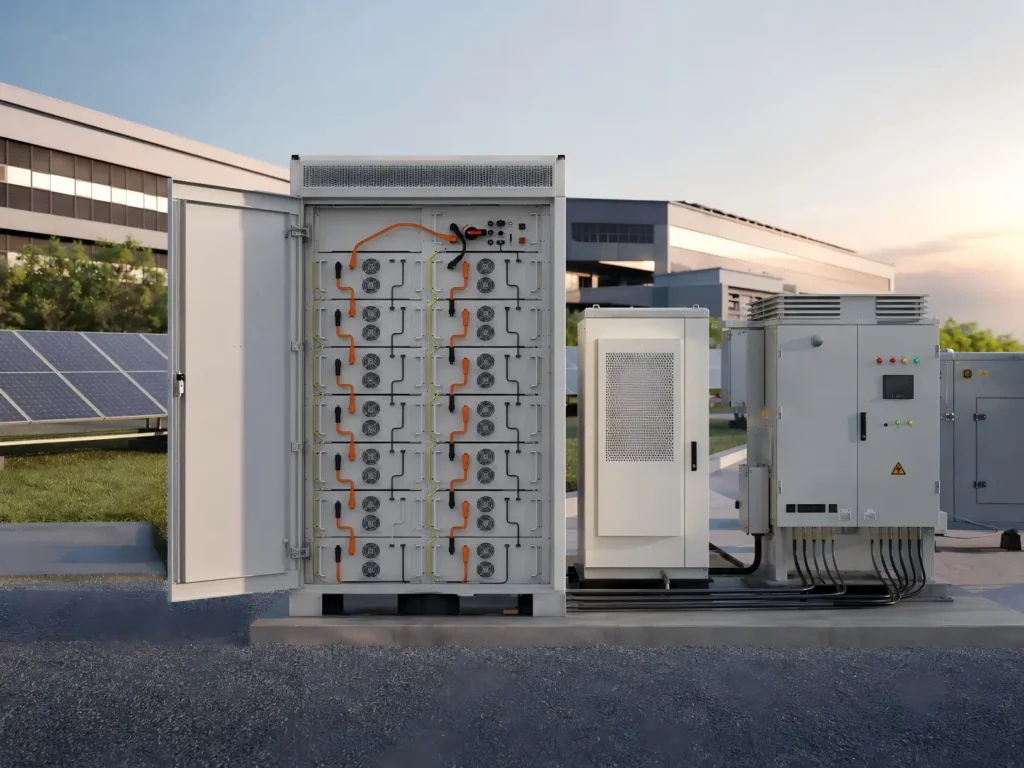

Solar & Microgrid Projects
Integrate solar generation and battery storage for microgrids, renewable energy projects and off-grid power systems.
RESOURCES
Download Technical Documents
Access detailed product information
and technical documents.
Choosing the Right Battery Technology for Energy Storage
LiFePO4 vs Sodium-ion: Performance, Safety and Application Comparison
MATURE TECHNOLOGY
LiFePO4 Battery
A proven battery technology widely used in energy storage systems, offering excellent safety, long cycle life, and stable performance.
- 6000+ Cycles
- High Safety
- Reliable Output
EMERGING TECHNOLOGY
Sodium-ion Battery
An innovative battery technology with excellent safety, strong resource availability, and promising performance in low-temperature environments.
- Cold Climate Ready
- Resource Advantage
- Future Solution
| Parameter | LiFePO4 | Sodium-ion |
|---|---|---|
| Battery Chemistry | Lithium Iron Phosphate | Sodium-ion |
| Energy Density | Higher | Moderate |
| Safety Performance | 6000+ cycles | 4000-6000 cycles |
| Low Temperature Performance | Good | Excellent |
| Thermal Stability | Excellent | Excellent |
| Raw Material Availability | Lithium-based | Sodium-based |
| Technology Maturity | Highly Mature | Rapidly Developing |
| Typical Applications | Residential ESS, Solar Storage, UPS | Large-scale ESS, Cold Climate Storage |
